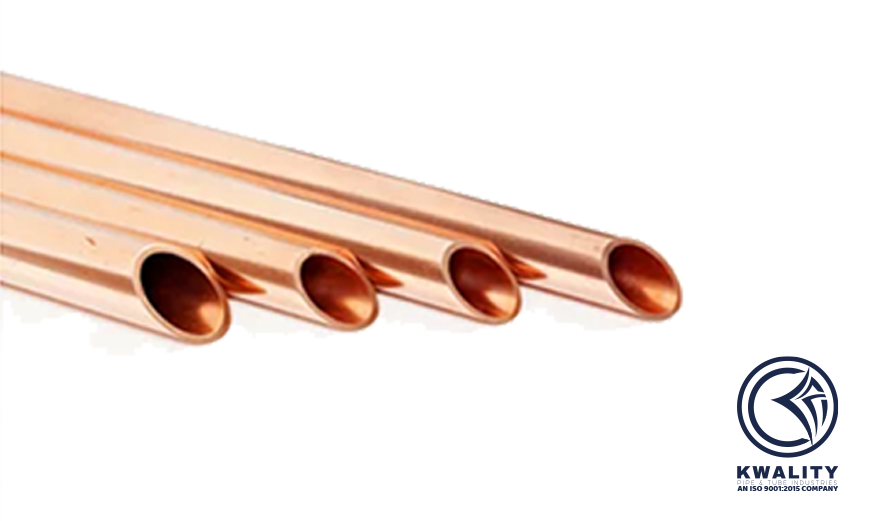

Kwality Pipe & Tube Industries is one of the largest and eminent manufacturers, suppliers and exporters of Copper Tubes for Heat Exchangers & Locomotives. We have achieved the new levels in providing excellent quality Copper Tubes for diverse industrial sectors. We are manufacturing efficient and lightweight Copper Tubes in customized specifications as per the demands of our esteem clients. These copper tubes are available variety of sizes, lengths and thicknesses. We recommend our Copper tubes/Pipes for Heat Exchangers & Locomotives in order to achieve the best results with excellent performance. We are producing Copper Tubes having excellent electrical and thermal conductivity. These tubes are used for Heat Exchangers & Locomotives as it offers exceptional hardness, strength and ductility.
Copper Tubes are an essential part of Heat Exchangers & Locomotives. Copper functions efficiently in elevated temperatures than any other metal. Copper offers many advantages and properties, which makes it perfectly suitable for Heat Exchangers & Locomotives. It provides excellent corrosion, erosion and oxidation resistance. This metal became an essential material for tubes as it is highly durable, efficient and cost-effective. We consider various characteristics and attributes of copper such as versatility, good welding qualities, better corrosion resistance, less maintenance, high conductivity and cost-effectiveness.
Kwality Pipe & Tube Industries has well-developed production facilities with advanced equipment. As we have a customer-centric approach, we believe in satisfying our customers by offering them top quality products. Our experts precisely design optimum quality Copper Tubes which match to the exact requirements of Heat Exchangers & Locomotives. We have a team of experienced professionals and workers who have expertise in designing and developing Copper Tubes for Heat Exchangers & Locomotives. We keep on upgrading our manufacturing firm with high-tech advancements and modern machinery. Our team uses efficient and effective methods to fabricate Copper Tubes for Heat Exchangers & Locomotives.
Kwality Pipe & Tube Industries has the best quality control team who ensures to check the performance and quality of each copper tube before dispatching it to the clients. We follow standard procedures and guidelines of international quality standards to test the product at every stage of the production process. Our experienced and skilled workers monitor each Copper tube for Heat Exchangers & Locomotives to ensure best operational quality. We store considerable stock of the Copper Tubes for any urgent requirements in Heat Exchangers & Locomotives. We guarantee to deliver every order in the shortest delivery time. We strictly follow the delivery deadlines provided by our valued clients.
We make sure to provide a convenient shipping mode with suitable packaging options. We use adequate packaging material to protect Copper Pipes for Heat Exchangers & Locomotives from any damage during the transport. We also offer customized packaging for the Copper tubes as per the demands of Heat Exchangers & Locomotives. We provide extra coverings to avoid dirt, rust and corrosion to the tubes. Munot Metalloys is providing safe and appropriate shipping ways depending on the locations of our worldwide clients. We believe in maintaining proper business relation with our clients by offering the best service. We are happy to receive any feedback and suggestions from our customers.
We recommend our copper tube for heat exchangers and condensers because copper's inherent superiority in thermal conductivity, corrosion resistance and strength has made it a preferred primary metal for Heat exchangers(radiators) and condensers since the dawn of cars and trucks. Now, with new technologies, our copper tube can be used to make smaller, lighter and stronger copper radiators. These radiators will be far more environmentally friendly because they are lead free and easier and cleaner to produce. Made with a non-toxic, low temperature allow based on the CuNiSnP system, they can be brazed in the same vacuum and controlled atmosphere furnaces used for aluminum radiators and at the same temperature (approx. 600°C). And since flux isn't present, cleaning after brazing isn't needed and no dangerous metals remain in the brazing material.
Technical Specification
| Standard | ASTM B68 / ASTM B75 / ASTM B280 / ASTM B88 / JIS H 3300 / EN1057 or BS2871: PART 2:1972 / DIN 1754/8905/ IS2501 |
|---|---|
| Specification | ASTM B280, JIS H3300, AS/NZS1571.JIS3300-2006 |
| Description | Copper Pipe and Tube For Heat Exchangers & Locomotives |
| Material | TU2, C1020T, C10200, T2, C1100, TP1, C1201T, C1200, TP2, C1220T, C12200, C14200, C19400, etc |
| Outer Diameter(OD) | 4mm to 150mm |
| Wall Thickness : | 0.2mm~5mm |
| Length | 1m, 2m, 3m, 6m, or as required. |
| Types | Seamless Pipes, Tube / Inner Grooved Pipes / Square Pipes, Tube / Rectangular Pipes, Tube / Finned Pipes, Tube |
| Application | 1. Pancake Coil for ACR, General Engineering Applications 2. LWC Coil for ACR, General Engineering Applications 3. Straight Copper Tubes for ACR and Refrigeration 4. Inner-grooved copper tube for ACR and Refrigeration 5. Copper Pipe for Transportation System of water, gas and oil 6. Semi-finished Copper tube for industrial applications |
Dimensions
Wall thickness of copper pipe varies with the pipe schedule - the four common standards are named K, L, M, and DWV (Drain/Waste/Vent - non-pressurized), from thickest to thinnest.
| Pipe / Tube Type | Nominal Pipe Size | O.D. | I.D. | Wall Thickness | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| K | L | M | DWV | K | L | M | DWV | |||
| Copper Tubes for Heat Exchangers | 1/4" | 3/8" | 0.305 | 0.315 | - | - | 0.035 | 0.030 | - | - |
| Copper Tubes for Heat Exchangers | 3/8" | 1/2" | 0.402 | 0.430 | 0.450 | - | 0.049 | 0.035 | 0.025 | - |
| Copper Tubes for Heat Exchangers | 1/2" | 5/8" | 0.527 | 0.545 | 0.569 | - | 0.049 | 0.040 | 0.028 | - |
| Copper Tubes for Heat Exchangers | 5/8" | 3/4" | 0.652 | 0.666 | - | - | 0.049 | 0.042 | - | - |
| Copper Tubes for Heat Exchangers | 3/4" | 7/8" | 0.745 | 0.785 | 0.811 | - | 0.065 | 0.045 | 0.032 | - |
| Copper Tubes for Heat Exchangers | 1" | 1-1/8" | 0.995 | 1.025 | 1.055 | - | 0.065 | 0.050 | 0.035 | - |
| Copper Tubes for Heat Exchangers | 1-1/4" | 1-3/8" | 1.245 | 1.265 | 1.291 | 1.295 | 0.065 | 0.055 | 0.042 | 0.040 |
| Copper Tubes for Heat Exchangers | 1-1/2" | 1-5/8" | 1.481 | 1.505 | 1.527 | 1.541 | 0.072 | 0.060 | 0.049 | 0.042 |
| Copper Tubes for Heat Exchangers | 2" | 2-1/8" | 1.959 | 1.985 | 2.009 | 2.041 | 0.083 | 0.070 | 0.058 | 0.042 |
| Copper Tubes for Heat Exchangers | 2-1/2" | 2-5/8" | 2.435 | 2.465 | 2.495 | - | 0.095 | 0.080 | 0.065 | - |
| Copper Tubes for Heat Exchangers | 3" | 3-1/8" | 2.907 | 2.945 | 2.981 | 3.030 | 0.109 | 0.090 | 0.072 | 0.045 |
Common wall-thicknesses of copper tubing in the USA are "Type K", "Type L", "Type M", and "Type DWV"
Common wall-thicknesses in Europe are "Type X", "Type Y" and "Type Z", defined by the EN 1057 standard.
